Advanced Mold Manufacturing Technology: In-Process Measurement and Mirror Polishing Techniques

Modern Advanced Mold Manufacturing Technology (Part 3)

With the development of precision manufacturing, mold production increasingly demands higher accuracy and superior surface quality. On-site measurement technology and mirror polishing surface engineering have become essential components of advanced mold manufacturing.

These technologies improve quality control, reduce production errors, and enhance surface performance for high-precision applications.

On-Site Mold Inspection Technology

As precision mold requirements continue to increase, measurement accuracy becomes more critical. Traditional coordinate measuring machines were limited by environmental conditions and were rarely used directly in manufacturing workshops.

New-generation coordinate measuring machines now feature:

• Temperature compensation systems
• Vibration-resistant structural materials
• Improved dust protection
• Enhanced environmental adaptability
• Higher operational reliability

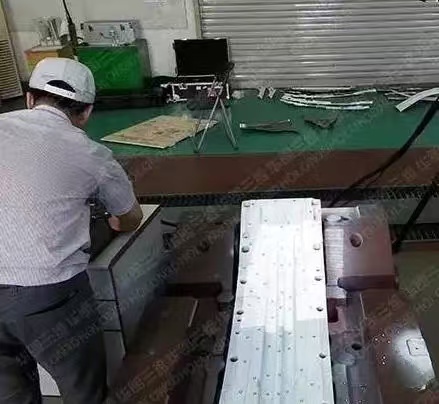

These improvements allow measurement equipment to be installed directly in production workshops, enabling on-site inspection.

Advantages of On-Site Measurement

On-site mold inspection provides:

• Faster quality verification
• Reduced transportation errors
• Real-time dimensional control
• Improved manufacturing efficiency
• Better process consistency

This trend toward measurement localization supports modern flexible manufacturing systems.

Mirror Polishing Mold Surface Engineering Technology

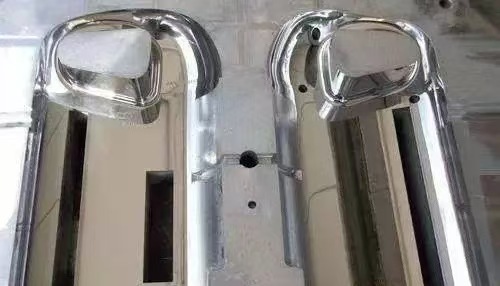

Mold polishing is a critical part of mold surface engineering and an essential post-processing step in mold manufacturing. Current polishing technology can achieve surface roughness of approximately Ra 0.05 μm, which satisfies most industrial requirements.

However, achieving Ra 0.025 μm mirror-level finishing still requires advanced equipment, abrasives, and refined processing techniques. As demand for mirror-surface injection molds increases, polishing technology becomes increasingly important.

Applications Requiring Mirror Surface Molds

Mirror-finished molds are widely used in products requiring high transparency and surface quality, such as:

• Optical lenses
• Compact disc molds
• Transparent plastic components
• Precision optical elements
• High-gloss consumer products

These applications require extremely smooth mold surfaces to ensure optical clarity and product quality.

Influence of Mold Material on Polishing Quality

Mirror polishing performance depends not only on polishing equipment and processes but also heavily on mold material quality. This factor is often underestimated.

For example, using standard carbon steel for injection molds may show visible defects at Ra 0.2 μm, and further polishing only increases brightness without improving surface roughness.

Therefore, mirror mold manufacturing often uses high-quality mold steels designed for polishing performance.

Requirements for Mirror Mold Steel

High-quality mirror mold steel must be produced using advanced metallurgical processes, including:

• Vacuum degassing
• Argon protection casting
• Continuous casting and rolling
• Precision forging
• Fine grain structure control

These processes reduce internal defects, minimize impurities, and improve material uniformity, enabling mirror-level polishing performance.

Benefits of Advanced Surface Engineering

Advanced polishing and surface engineering technologies provide:

• Improved surface smoothness
• Higher product transparency
• Reduced friction and wear
• Better mold release performance
• Enhanced product appearance quality

These advantages are critical for precision manufacturing applications.

Conclusion

On-site mold inspection technology and mirror polishing surface engineering are essential components of modern advanced mold manufacturing. By combining real-time measurement with ultra-smooth surface finishing, manufacturers can achieve higher accuracy, improved quality, and better production efficiency.

These technologies will continue to drive innovation in precision engineering and high-end manufacturing industries.
