Profile of a Line With Datums: Tolerance Zone Definition and Interpretation
Profile of a Line With Datums: Definition and Interpretation
In geometric dimensioning and tolerancing (GD&T), the profile of a line with datums is used when both shape and location relative to reference features must be controlled. Unlike profile tolerances without datums, this specification constrains the contour using defined reference planes.
This control is commonly used in precision engineering, optical components, and complex mechanical parts where alignment is critical.

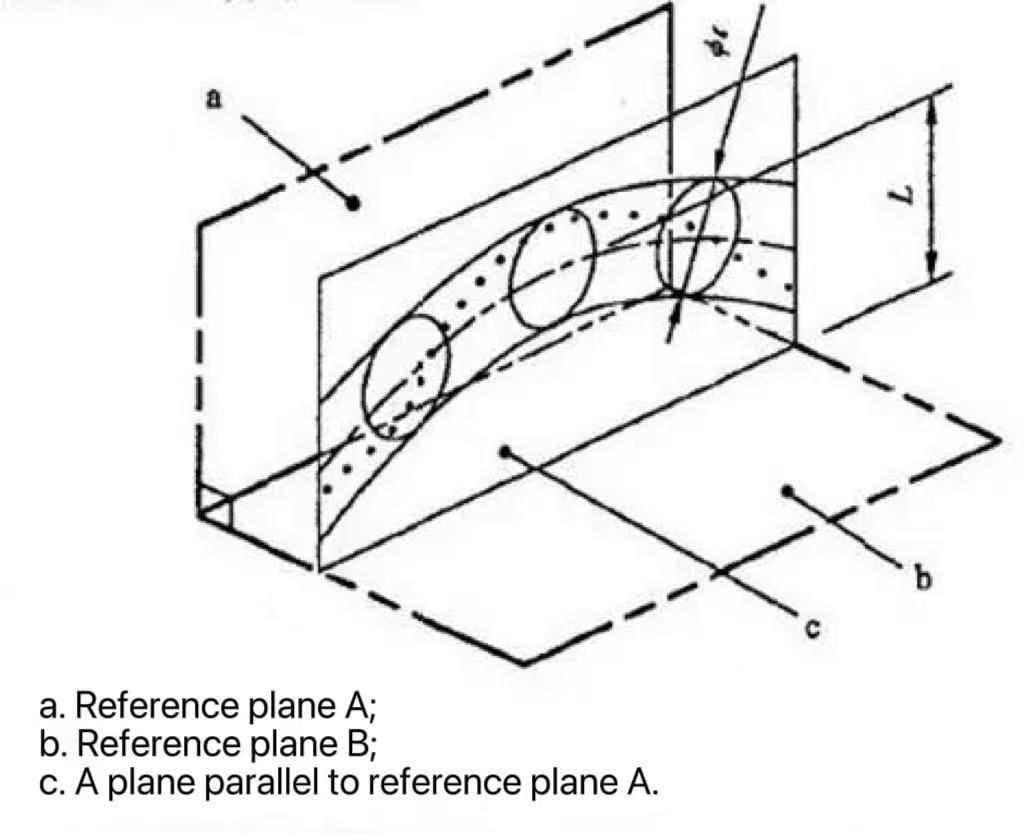

1. Tolerance Zone Definition
The tolerance zone is defined as the area bounded by two envelope curves generated by a series of circles:
- The diameter of each circle equals the tolerance value t
- The centers of the circles lie on the theoretically correct geometry
- The geometry is established relative to datum plane A and datum plane B
These circular envelopes create a tolerance band that is fixed in position and orientation by the referenced datums.
This means the actual profile must not only match the shape but also align correctly with the datum references.

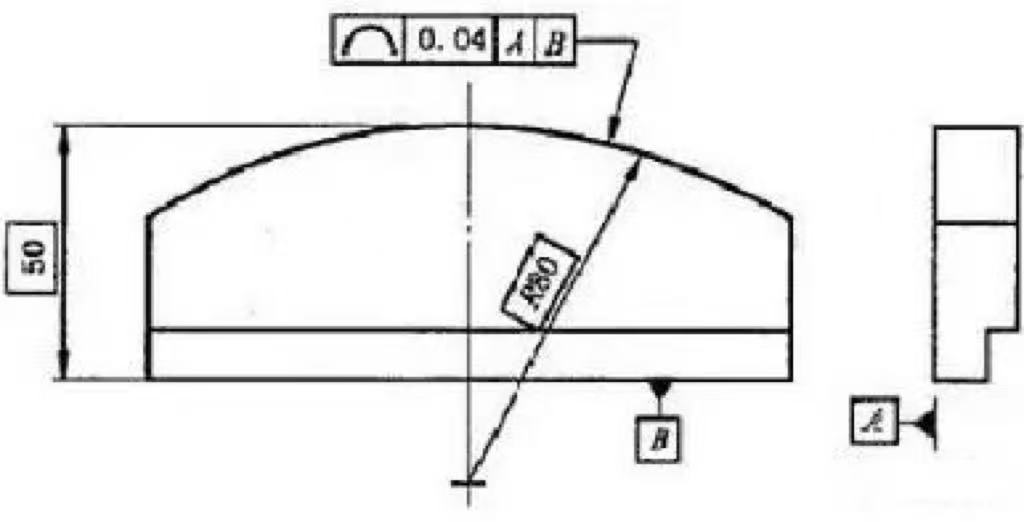

2. Interpretation of the Specification
In any cross-section parallel to the indicated projection plane, the extracted actual profile must lie within two equidistant envelope boundaries formed by a series of circles:
- Circle diameter = 0.04
- Circle centers located on the theoretically correct geometry
- Geometry defined by datum plane A and datum plane B
The measured contour must remain completely inside this tolerance zone.
Key Characteristics
Profile of a line with datums controls:
- Shape accuracy
- Position relative to datums
- Orientation relative to datums
This makes it stricter than profile tolerance without datum references.
Applications
This tolerance is commonly applied in:
- Precision optical components
- Mechanical guide surfaces
- Aerospace structural parts
- Mold and die alignment features
- High-precision assembly interfaces
It ensures proper alignment between interacting components.
Comparison With Profile Without Datum
Profile without datum controls only shape.
Profile with datums controls:
- Shape
- Location
- Orientation
This additional constraint improves assembly accuracy and functional performance.
Why It Matters
Using datum-referenced profile tolerances provides:
- Accurate alignment between parts
- Improved assembly consistency
- Better functional performance
- Reduced cumulative tolerance errors
This is especially important in precision systems where positioning affects performance.

Conclusion
Profile of a line with datums defines a tolerance zone created by circular envelopes positioned relative to datum planes A and B. The actual profile must stay within this zone, ensuring both shape accuracy and proper alignment.
Understanding this tolerance helps engineers achieve precise control over complex geometries and improve overall product quality.
