Profile of a Line Without Datum: Tolerance Definition and Interpretation

Profile of a Line Without Datum: Definition and Interpretation

In geometric dimensioning and tolerancing (GD&T), profile tolerances are widely used to control complex shapes and ensure functional accuracy. One commonly used control is the profile of a line without datum, which defines allowable variation for a cross-sectional contour without referencing a datum.

Understanding this tolerance is essential for precision machining, inspection, and quality control.

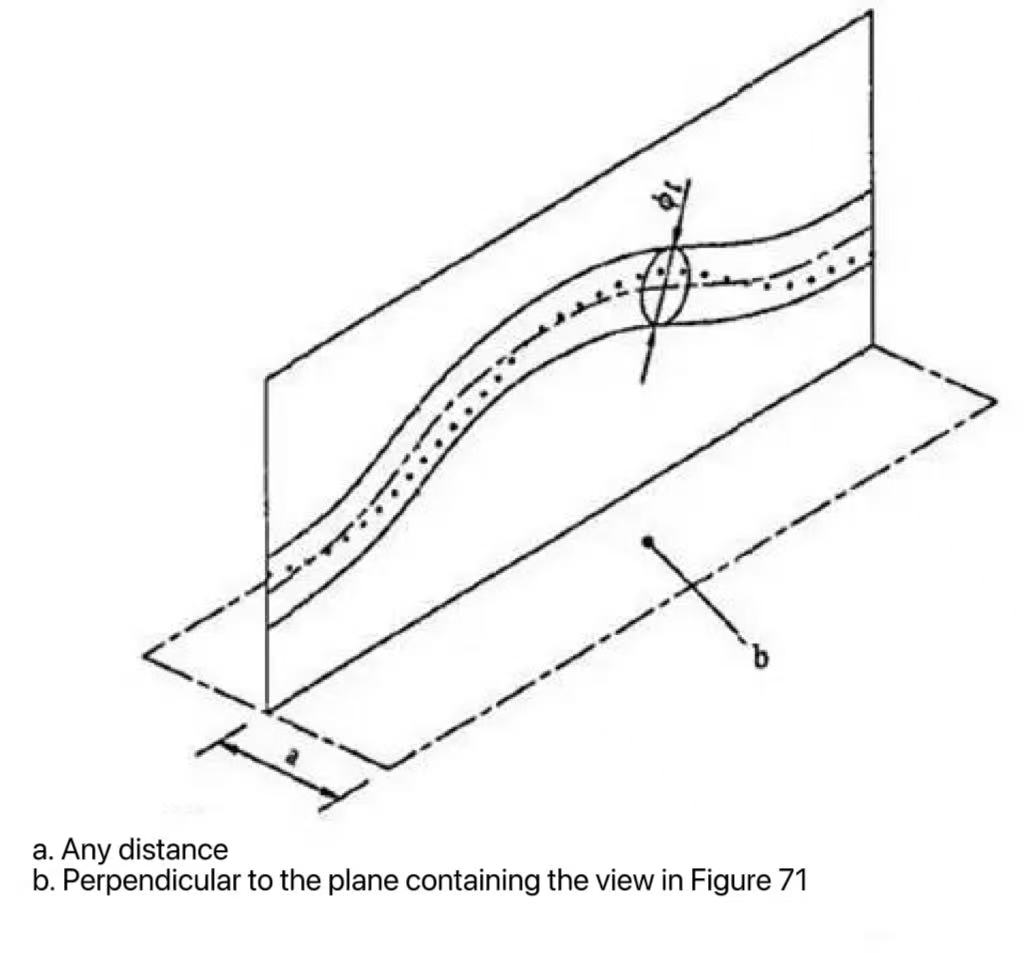

1. Tolerance Zone Definition

The tolerance zone is defined as the area bounded by two envelope curves. These envelopes are generated by a series of circles whose:

• Diameter equals the tolerance value t
• Centers lie on the theoretically correct geometric profile

These circles create a uniform tolerance band around the ideal contour. The actual measured profile must fall within this band.

This type of tolerance ensures the shape of a line remains consistent without restricting its location or orientation.

2. Interpretation of the Specification

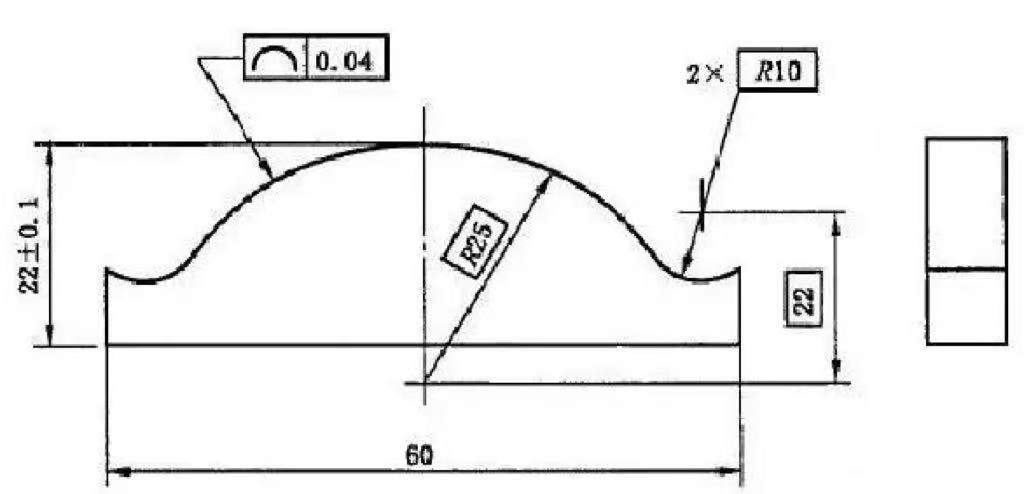

When applied to a drawing, the requirement means:

In any cross-section parallel to the projection plane shown, the extracted actual profile must lie within two envelope boundaries. These boundaries are formed by a series of circles with:

• Diameter equal to 0.04
• Centers located on the theoretically correct geometry of the measured feature

The actual contour must remain entirely within this tolerance zone.

Key Characteristics

Profile of a line without datum controls:

• Shape accuracy only
• Not position
• Not orientation
• Not size

This makes it suitable for features where form control is required but alignment to other features is not critical.

Applications

This tolerance is commonly used in:

• Precision machined contours
• Optical component edges
• Mold and die surfaces
• Aerodynamic profiles
• Complex curved surfaces

It ensures smooth and consistent shape while allowing flexibility in positioning.

Why It Matters

Using profile tolerance without datum provides:

• Better control of functional shapes
• Simplified inspection requirements
• Improved manufacturing flexibility
• Reduced unnecessary constraints

This approach is particularly useful when only the contour shape affects performance.

Conclusion

The profile of a line without datum defines a tolerance zone formed by circular envelopes around the ideal contour. The actual measured line must stay within this boundary, ensuring consistent shape accuracy without restricting location.

Understanding this tolerance helps engineers and inspectors achieve better control of complex geometries while maintaining manufacturing efficiency.
