How to Choose an Optical Table: Complete Guide to Vibration Isolation Performance

How to Choose an Optical Table: A Comprehensive Guide to Maximizing Value

Optical tables are widely used in optics, electronics, precision machinery, metallurgy, aerospace, aviation, marine engineering, precision chemical industries, and non-destructive testing. They serve as critical vibration isolation devices for precision instruments and experimental equipment.

The dynamic mechanical performance of an optical table directly affects the accuracy and reliability of experimental results. Even micro-vibrations can significantly impact measurement precision. As experimental requirements continue to increase, vibration isolation technology for optical tables must also improve.

Why Vibration Isolation Matters

Micro-vibrations can originate from many sources, including:

• Structural movement of large buildings
• Ground or floor vibration transmission
• Electrical equipment operation
• Mechanical systems
• Acoustic noise
• Street traffic
• Human movement

These environmental disturbances create small but critical displacements that can negatively affect precision experiments.

Impact of Vibration on Optical Experiments

Precision optical experiments rely on stable positioning. Vibrations in or near the working area can cause relative motion between optical components. This motion may lead to:

• Blurred imaging results
• Beam misalignment
• Data acquisition errors
• Reduced measurement repeatability
• Experimental instability

Even extremely small deviations can produce unacceptable results in high-precision optical setups.

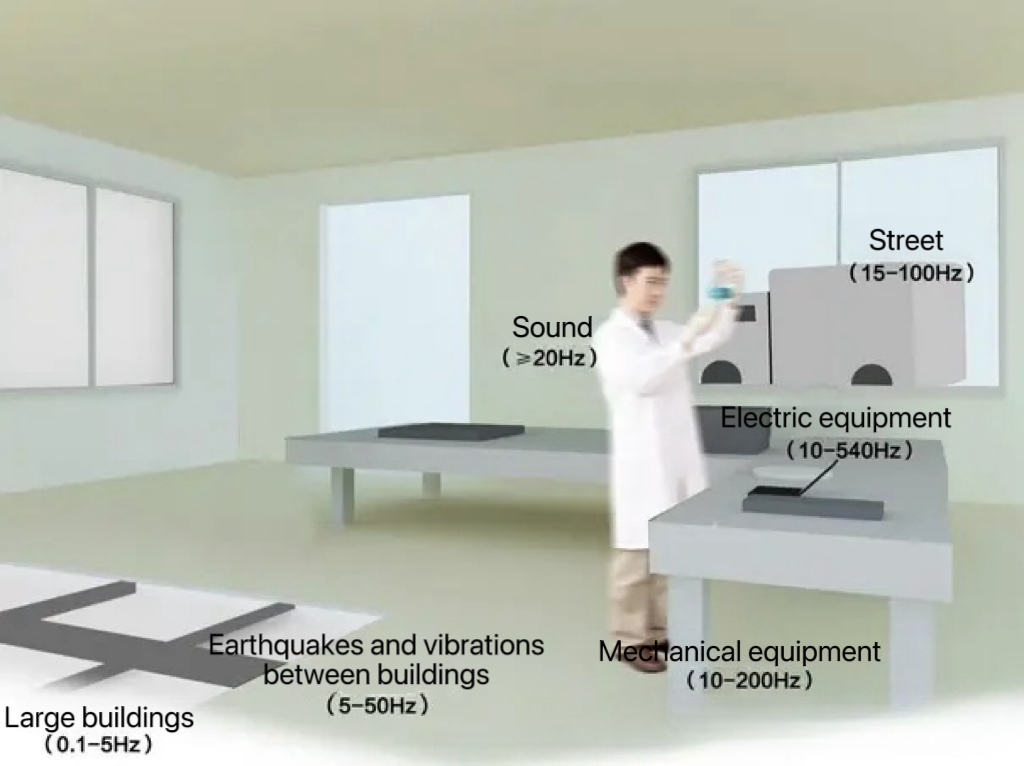

Figure 1. Schematic diagram of external vibration source

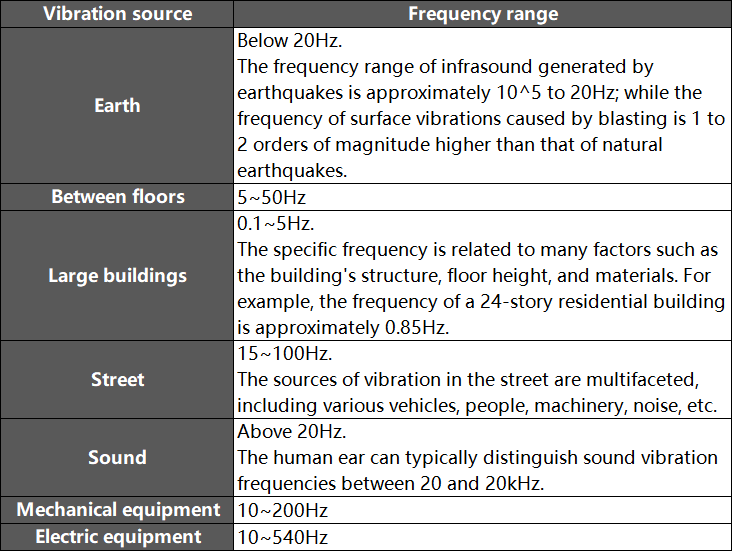

Table 1: Various Vibration Sources and Vibration Frequencies

Note: Difference between vibration and oscillation:

Vibration: Periodic, repetitive motion occurring within a certain range for a sustained period of time.

Oscillation: Sudden or accidental one or more instances of motion.

Key Factors When Choosing an Optical Table

1. Vibration Isolation Performance

The primary function of an optical table is vibration isolation. High-performance tables reduce environmental disturbances and improve experimental stability.

2. Structural Stability

A rigid table structure minimizes deformation and maintains consistent alignment between optical components.

3. Damping Characteristics

Good damping helps absorb vibration energy and prevents resonance amplification.

4. Load Capacity

The table must support the weight of optical instruments without affecting isolation performance.

5. Environmental Compatibility

Consider installation environment such as laboratory floors, nearby machinery, and building structure.

Benefits of Selecting the Right Optical Table

Choosing the correct optical table can:

• Improve experimental accuracy
• Reduce measurement noise
• Enhance system stability
• Increase repeatability
• Protect precision instruments

A properly selected table ensures your investment delivers maximum performance.

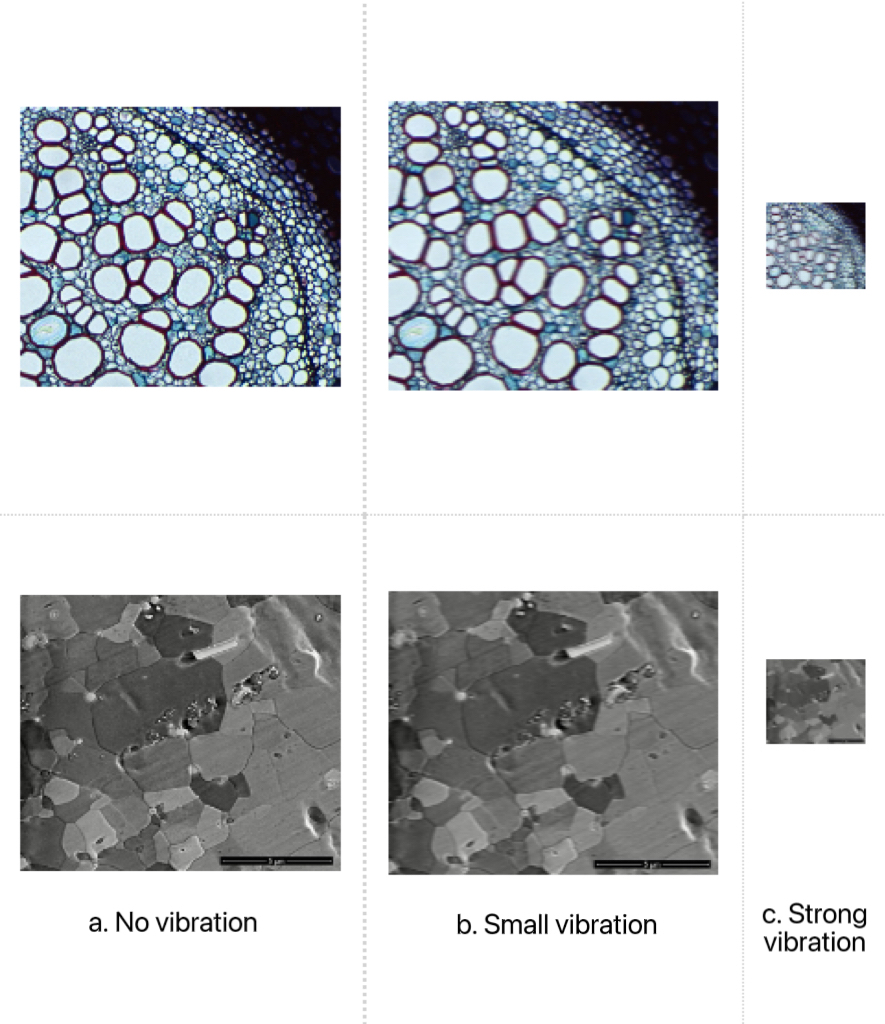

Figure 2. Microscopic images (top group: cellular structure; bottom group: surface structure of metal)

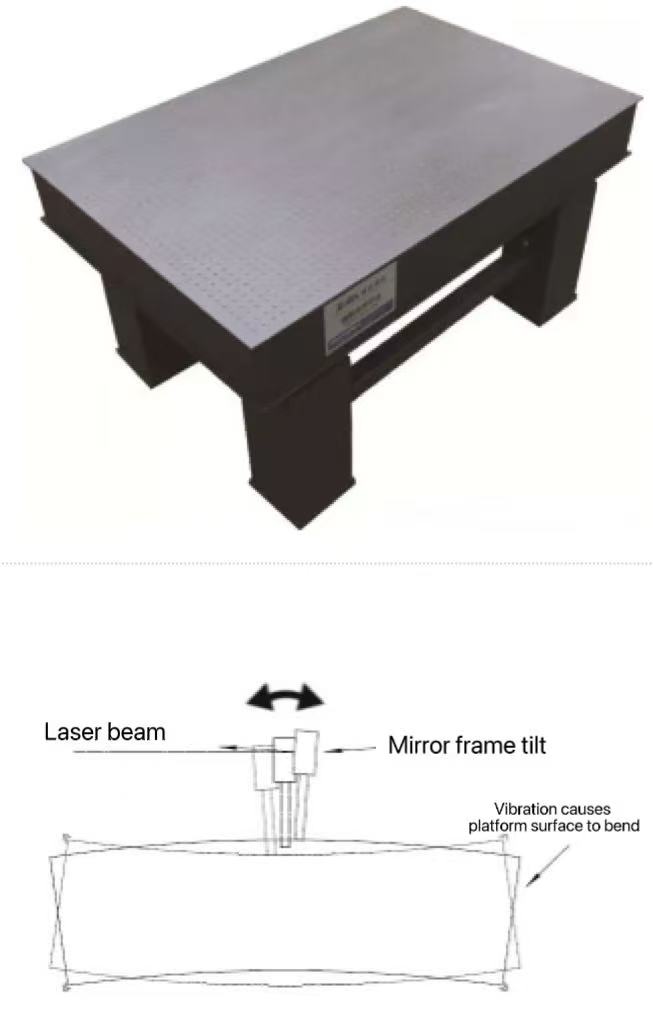

Figure 3. Displacement caused by optical platform vibration

Conclusion

Environmental vibration is unavoidable in most laboratory and industrial environments. A high-quality optical table provides the stability needed for precise positioning and reliable experimental results.

By understanding vibration sources and selecting the right optical table, you can significantly improve measurement accuracy and ensure your precision experiments deliver consistent and dependable outcomes.
