ZDT-P Pneumatic Optical Table | High Precision Vibration Isolation System

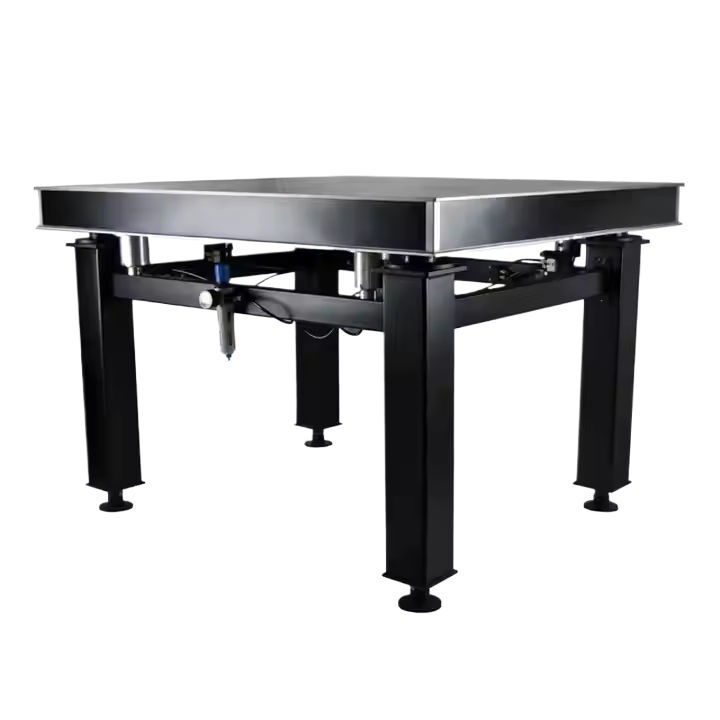

ZDT-P Series

Pneumatic Vibration lsolation

TECHNICAL SPECIFICATIONS:

Inherent Frequency	1.0-2.0Hz, vertically; 1.0-2.0Hz, horizontall
Vibration Isolation Structur	Ultra thin air spring
Leveling Typ	Automat
Vibration Damping Typ	Porous quasi-laminar flow damping element with diffuse
Total Table Heigh	800mm
Working Air Pressur	0.2-0.4MPa
Compressed Air Sourc	Silent compressor (noise level) <50dB
Vibration Isolating Efficiency	82～88%@5Hz, 86～95%@10Hz, vertically
Vibration Isolating Efficiency	78～86%@5Hz, 84～92%@10Hz, horizontall
Re-leveling Accurac	±0.1mm
Table Top Flatnes	≤0.05mm/m²
Surfaced Roughnes	≤0.8μm, matt surface finis
Isolator Height Adjustment Rang	±10mm
Mounting Holes	M6 tapped holes on 25mm grid. Hole to edge 12.5mm or 37.5mm
Top Skin	5mm
Bottom Skin	4mm
Material	Stainless Steel

Steel Honeycomb Core Structure

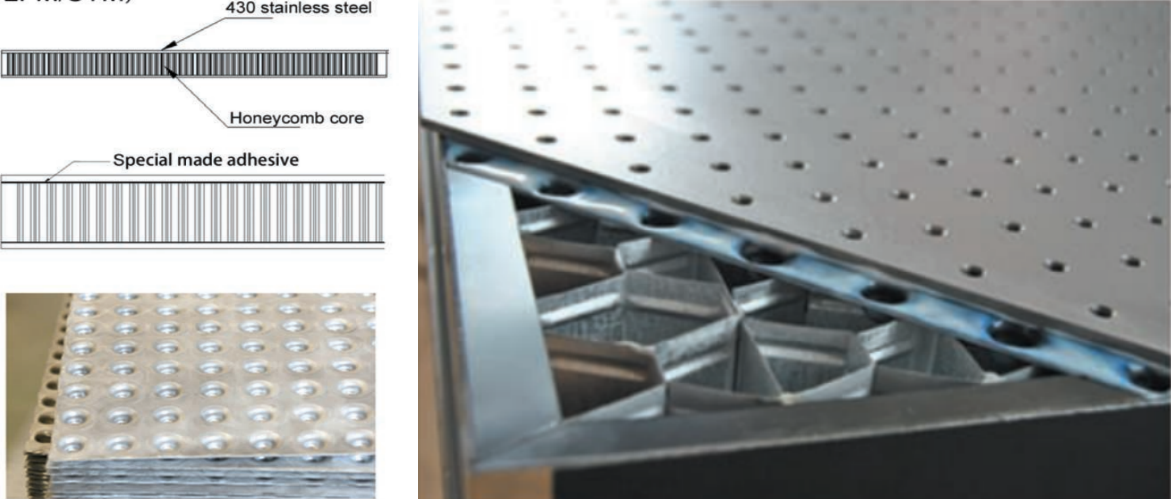

High density honeycomb core optical breadboard is widely applied in the scientific fields of optical experiments, medical researches,high precision devices manufacturing and testing as well as aviation labs etc.Its features of high rigidity and low self weight, providing a solid mounting platform for the experiments hence ensure the accuracy of the experiment applica- tions.The breadboard is designed with a structure of top and bottom skins,honeycomb cores and sealed cups.

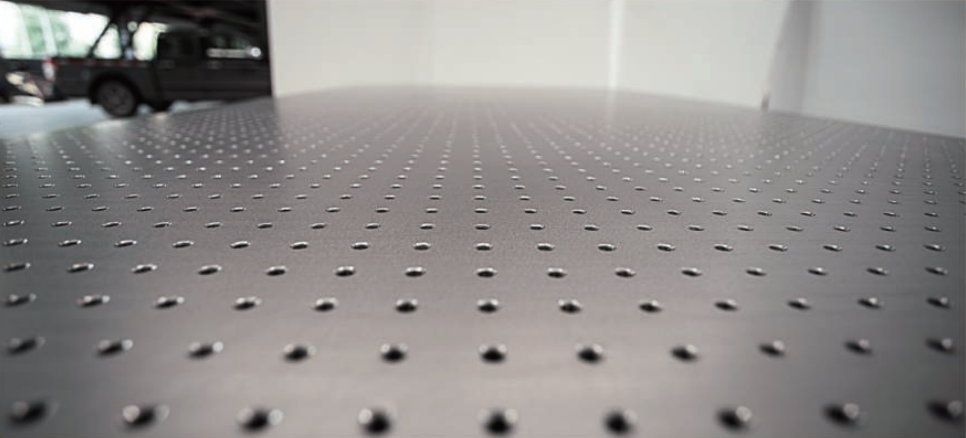

The table top surface is precision tapped and delicately sanded to provide a non-reflecting surface. Moreover, the surface is completely cleaned to remove residual metal particles and cutting fluids.

Tapped and Clean Surface

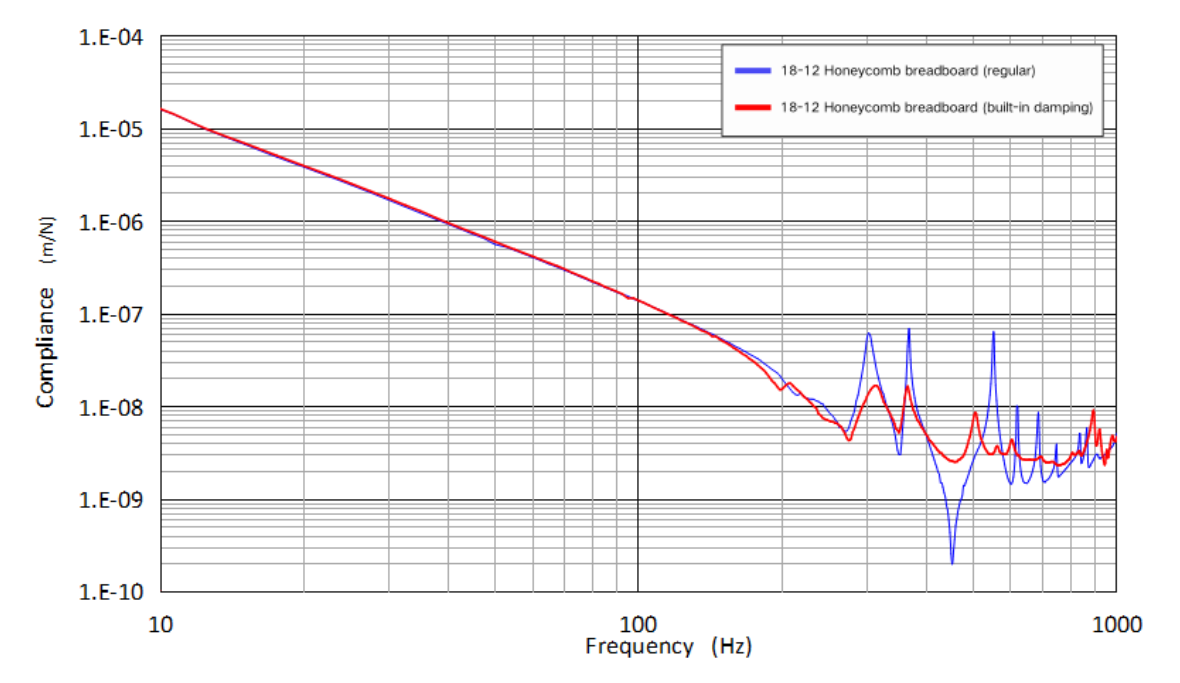

The corner compliance was measured on a 1800 x 1200 x 200 mm Research Grade optical table

top.

GET A QUOTE

Contact Us

PRODUCT FEATURES:

·Vibration isolation dampingoptical breadboard for surfaceresonance elimination

·High density honeycombcore structure breadboard

·Clean top with sealed cups

·Automatic self leveling

·Optional ordering for Castors
